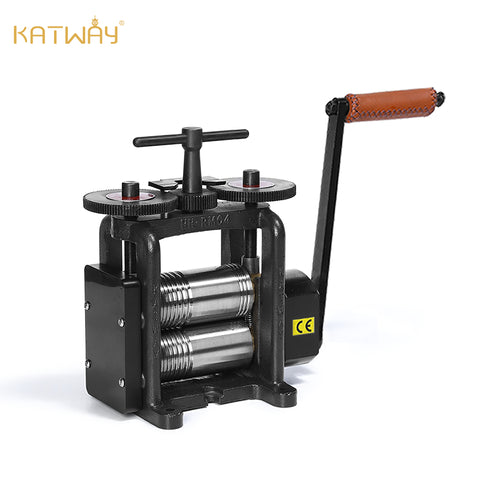

Rolling Mill, 130 mm Rolls-Combination,HH-RM04

Katway SKU: HH-RM04

Rolling Mill, 130 mm Rolls-Combination,HH-RM04

Katway SKU: HH-RM04
Regular price $769.99
/
  • Free worldwide shipping
  • Free returns
  • Carbon neutral
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Shipping calculated at checkout.

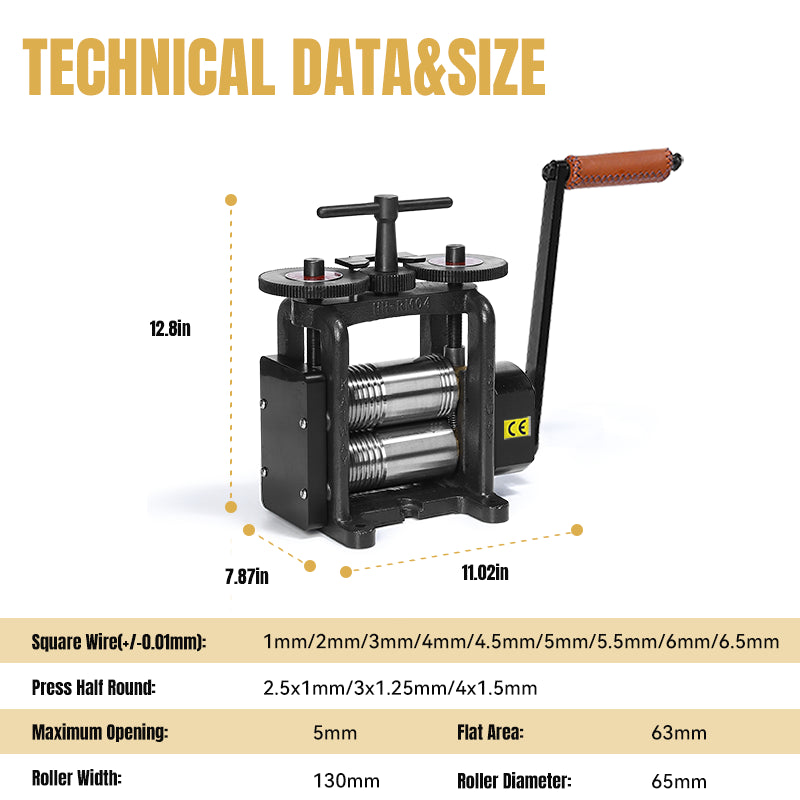

Specifications

Item No: HH-RM04
Item Name: Rolling mill 130MM

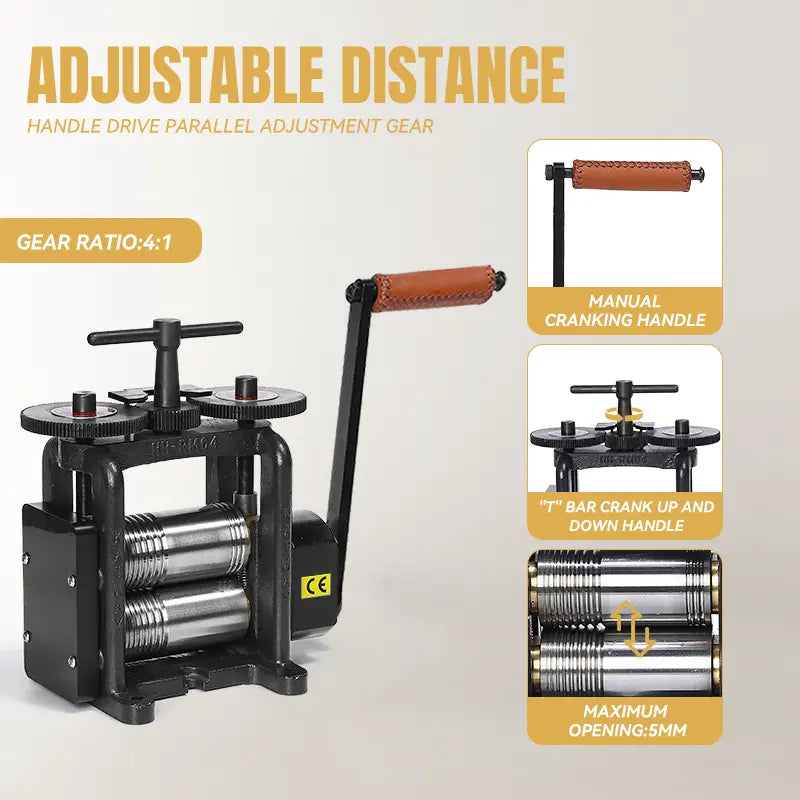

Gear Ratio: 4:1
Roller Width: 130MM
Roller Diameter: 65MM
Maximum Opening: 5MM

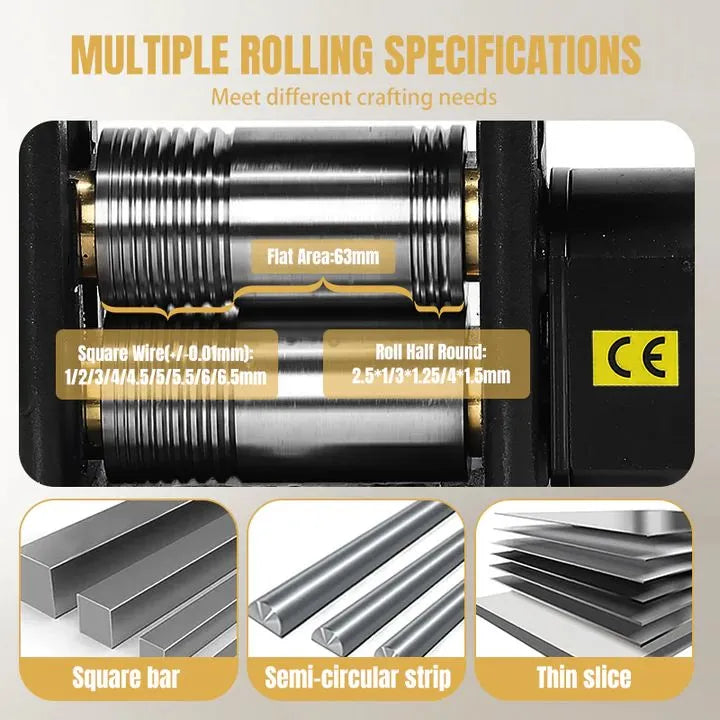

Flat Area: 63MM
Square Wire(+/-0.01MM): 1.0,2.0,3.0,4.0,4.5,5.0,5.5,6.0,6.5
Ring shank-half round ellipsis: 2.5*1,3*1.25,4*1.5MM
Dimension: 28*20*32.5CM
Shipping Dimension: 37*34*24CM
Shipping Weight: 26.2KG

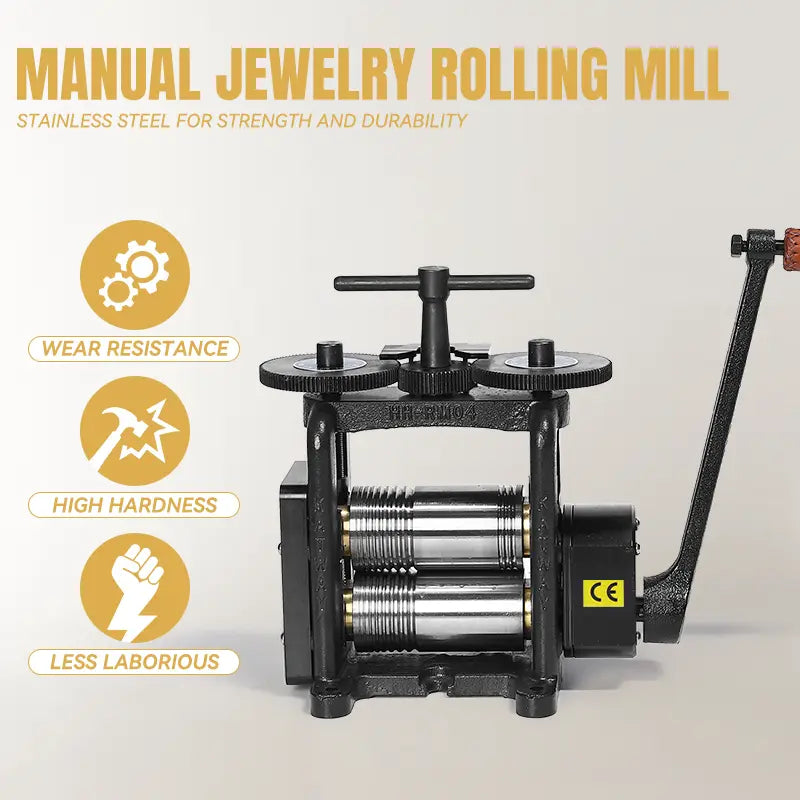

We have started utilizing a unique hardening procedure which allows us to market superior rollers that will perform beautifully.Our rollers are made from a high quality carbon steel alloy that offers excellent wear resistance and the outer 3mm of the rolls are hardened to around 60 HRC for superior deformation resistance.
Our new units are all powder coated for superior corrosion protection and appearance. Katway rolling mills feature true gear reduction with easily turned short handles.

Rolling Mill, 130 mm Rolls-Combination,HH-RM04

A wire rolling mill is a specialized piece of machinery used in the metalworking industry to process metal wires into various forms, sizes, and shapes. These rolling mills are designed to reduce the cross-sectional area of wire rods while simultaneously increasing their length. Wire rolling mills play a pivotal role in the production of wires used across a wide range of applications, from electrical cables to jewelry, construction materials, and more.

Rolling Mill, 130 mm Rolls-Combination,HH-RM04
Rolling Mill, 130 mm Rolls-Combination,HH-RM04

Here are some key aspects of wire rolling mills:

  1. Wire Types: Wire rolling mills can process a variety of metal materials, including steel, copper, aluminum, and alloys. The choice of material depends on the intended application of the wire.

  2. Size and Shape Control: These rolling mills provide precise control over the diameter and cross-sectional shape of the wire, ensuring consistency and accuracy in the final product.

  3. High Precision: Wire rolling mills are known for their exceptional precision, making them ideal for producing wires with tight tolerances, smooth surfaces, and uniform dimensions.

  4. Reduction and Drawing: The wire rolling process involves drawing the wire through a series of progressively smaller dies or rollers, reducing its diameter and improving its surface finish.

  5. Versatility: Wire rolling mills are versatile machines, capable of producing wires in various forms, including round, square, rectangular, and other custom shapes.

  6. Applications: Wires produced by these mills are used in a wide array of industries, including telecommunications, automotive, construction, electronics, jewelry making, and more.

  7. Customization: Some wire rolling mills are equipped with advanced features that allow for customization of wire properties, such as hardness, tensile strength, and surface finish.

Rolling Mill, 130 mm Rolls-Combination,HH-RM04
Rolling Mill, 130 mm Rolls-Combination,HH-RM04
Rolling Mill, 130 mm Rolls-Combination,HH-RM04

In summary, wire rolling mills are essential tools in the metalworking industry, enabling the production of high-quality wires that meet precise specifications. Their versatility, precision, and ability to process various materials make them indispensable for manufacturers and artisans alike, contributing to the development of numerous products that rely on quality wire components.
