IMPORTANT:

• Unplug the hot wind gun after 5 minutes of power failure.
• Keep good conditions of earthing devices is an important link to guarantee the safety of persons and equipment.
• Keep devices in good and dry environment.
• No additional air compressor is required-Airfree

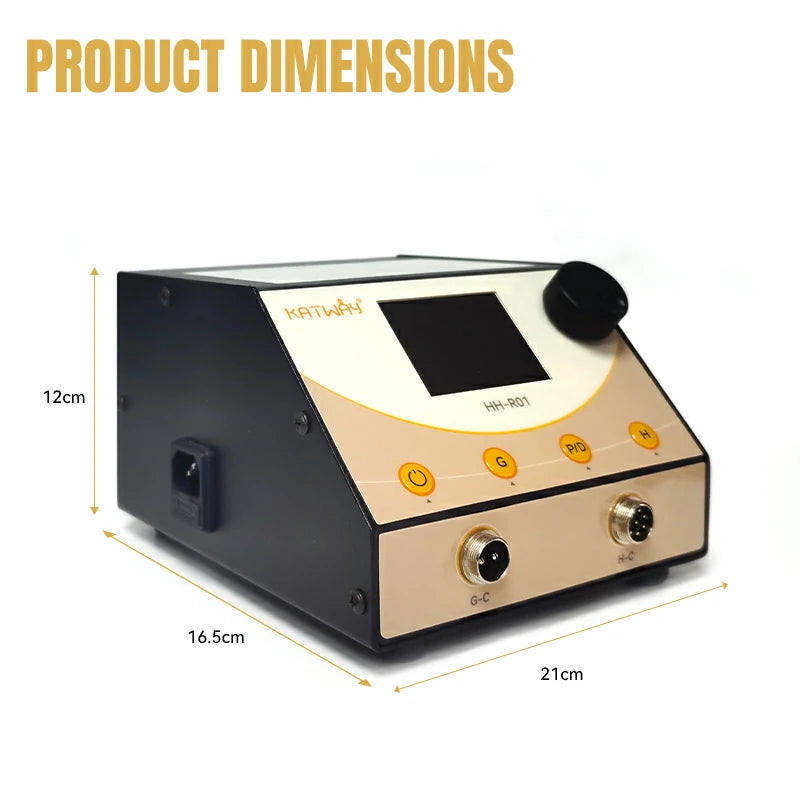

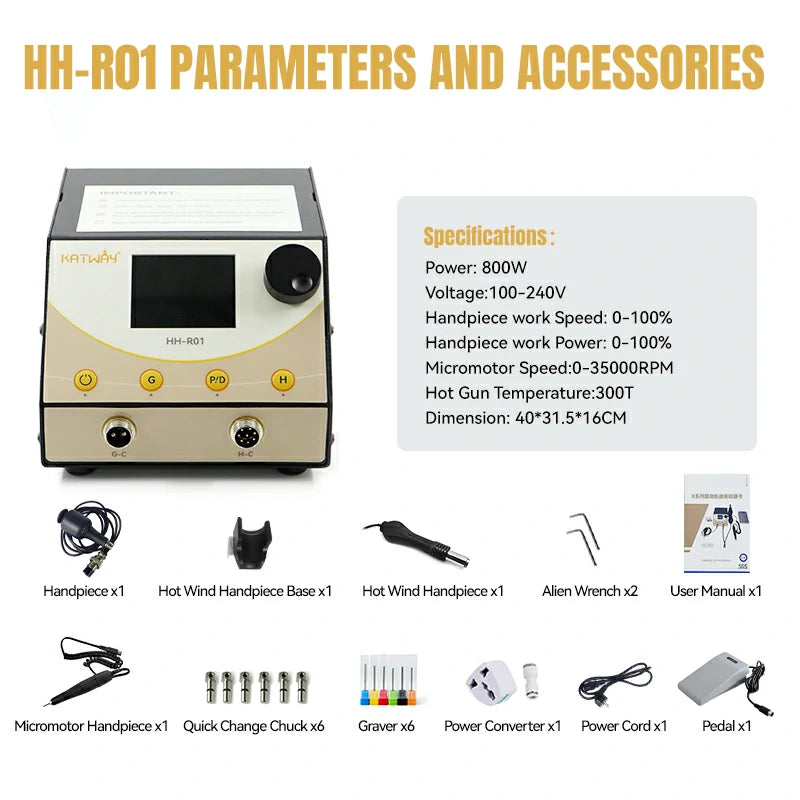

TECHNICAL PARAMETERS

ITEM NO.	HH-R01
ITEM NAME	R-Graver
VOTLAGE	100-240V
POWER	800W
HANDPIECE WORKING SPEED	0-100%
HANDPIECE WORKING POWER	0-100%
MICROMOTOR SPEED	0~35000RPM
HOT GUN TEMPERATURE	300 T

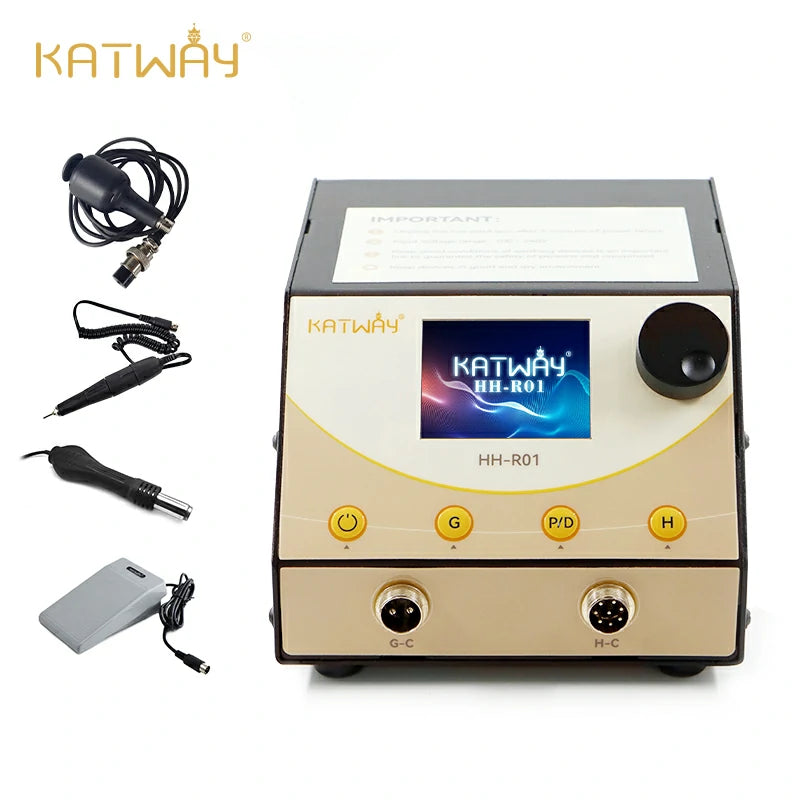

Product introduction

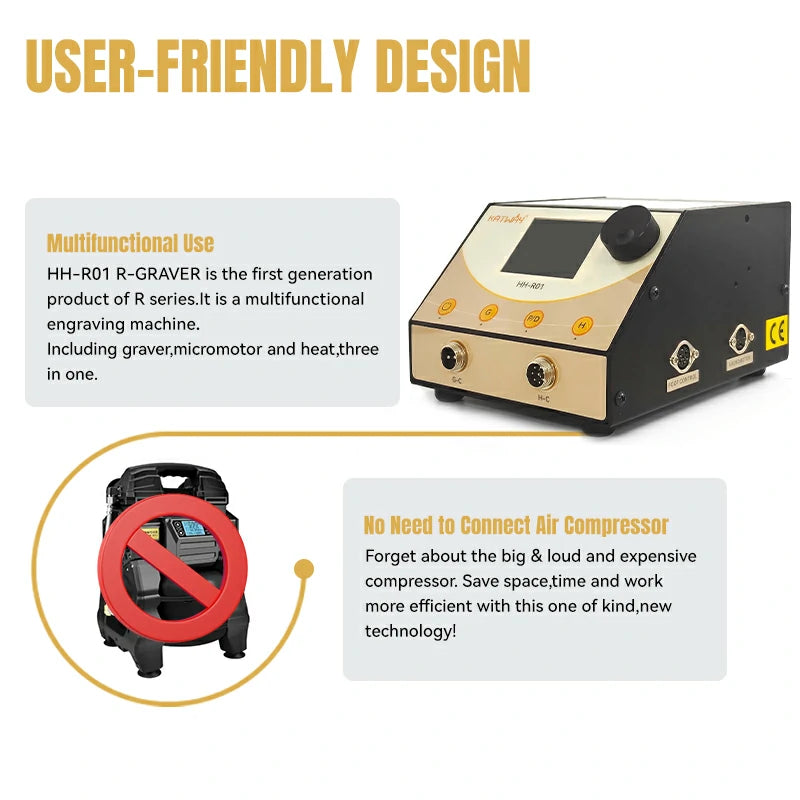

HH-R01 R-GRAVER is the first generation product of R series, including graver, micromotor and hot-wind , three in one.

This system offers you revolutionary powerful , eletreic graver. 110V/220V ， FULL USED.

Forget about the big & loud and expensive compressor. Save space , time and work more efficient with this one of a kind, new technology !

Includes : 6 quick change chuck , set of gravers & holder for handpiece , 1 graver handpiece, 1 micromotor handpiece , 1 hot wind handpiece，1 foot pedal.

NO COMPRESSOR NEEDED!!!

FUNCTION INTRODUCE

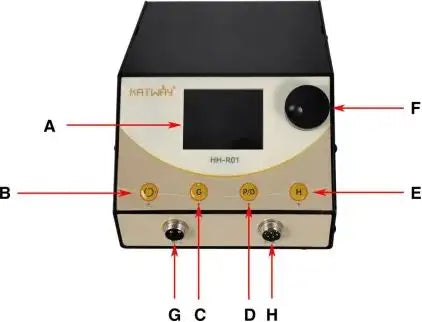

A - LIDUID CRYSTAL SCREEN

B - ON/OFF BUTTON

C - GRAVERBUTTON

D - MICROMOTOR BUTTON

E - HEAT BUTTON

F - ADJUSTING KNOB

G - GRAVER CONNECT FITTING

H - HOT WINDCONNECT FITTING

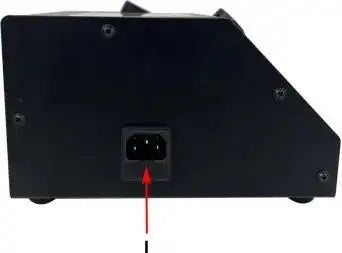

I - POWER ADAPTER

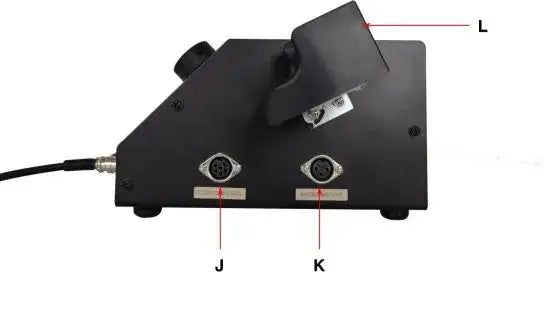

J - FOOT CONTROL CONNECT FITTING

K - MICROMOTOR CONNECT FITTING

L - HOT WIND HANDPIECE BASE

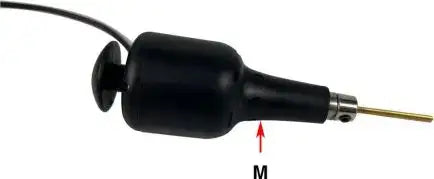

M - GRAVER HANDPIECE

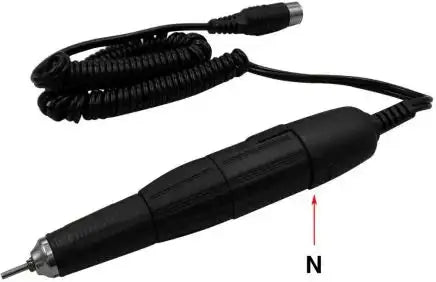

N - MICROMOTOR HANDPIECE

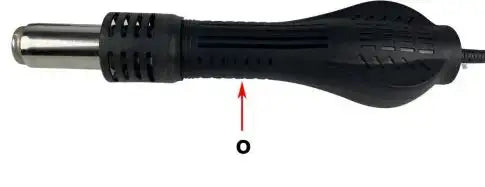

O - HOT-WIND HANDPIECE

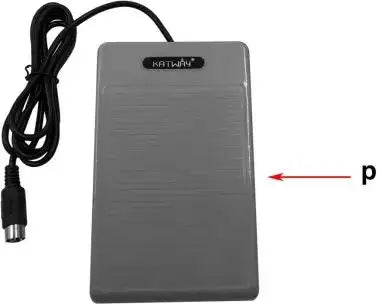

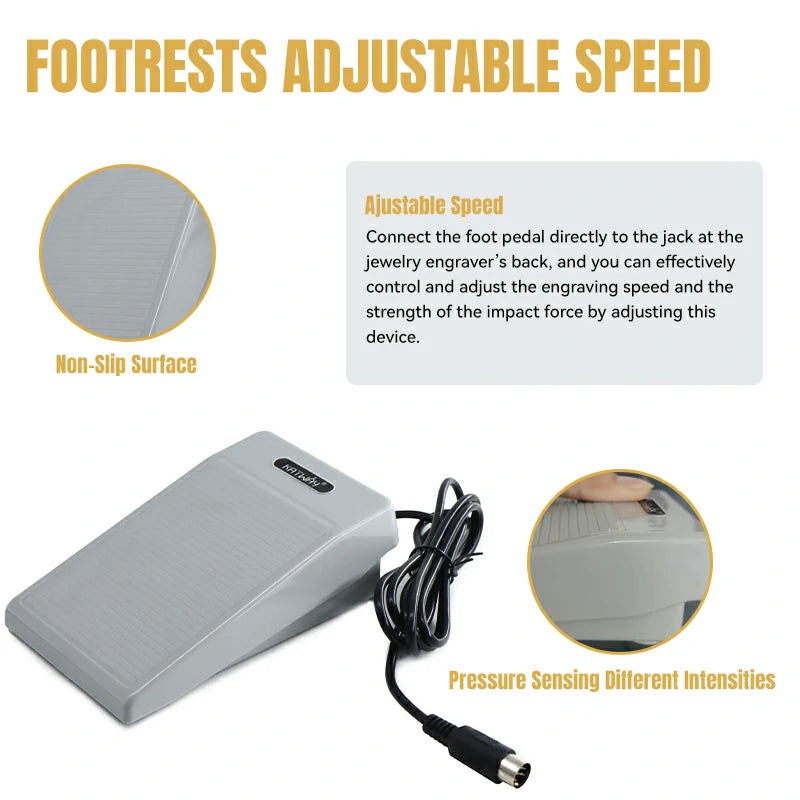

P - FOOT PEDAL

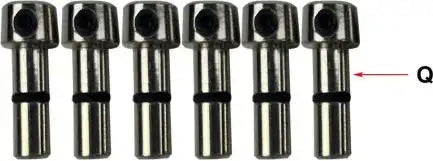

Q - QC TIPS

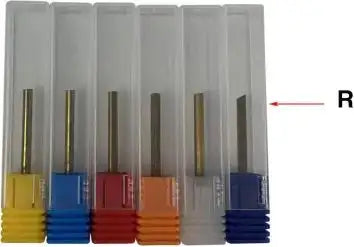

R - GRAVER SET

INSTALLATION GUIDE

Install the hot fan support

Access engraving handle

Access hot air handle

Access micromotor handle

Access foot pedal

Connect the power

OPERATION GUIDE

HH-R01 R-GRAVER special beyond the air compressor free feature.

The single handpiece can be quickly modified by switching out the pistion to allow for a wide variety of engraving styles from light bulino work to heavy engraving in hard metals like steel and titanium .

The engraving force can be adjusted by the plastic screw on the top of graver handpiece.

HH-R01 R-GRAVER includes three functions, GRAVER , MICROMOTOR, HEAT. THREE IN ONE.

GRAVER

Press G button each time (pic.1-C), the engraving inerface will jump to different engraving function,which are force by pedal , speed by pedal , trigger continuous, trigger oneshot.



When you enter a engraving interface , you press the adjusting knob（pic.1-F）, you can select the function item to be adjusted , roate the adjusting knob, then press foot pedal to work.

MICROMOTOR

Press P/D button each time (pic.1-D), the micromotor inerface will jump to different micromotor function,which are polishing and drilling .

When you enter a micromotor interface , you press the adjusting knob（pic.1-F）, you can select the function item to be adjusted , roate the adjusting knob, then press foot pedal to work.

HEAT

Press H button (pic.1-E), roate the adjusting knob, adjust temperture , then press foot pedal once, hot-wind handpice start working, press once again then stop.

SERVICE & REPAIR

Please Contact us（WhatsApp） for service and repair , if any needed .

WARRANTY

Each HH-R01 R-GRAVER carries a full 1-year warranty covering parts and labor. Please contact your local seller if any required.

📖Download the manual

Thanks For Your Purchasing Our Machine

Make Your Engraving Life Fantastic !
